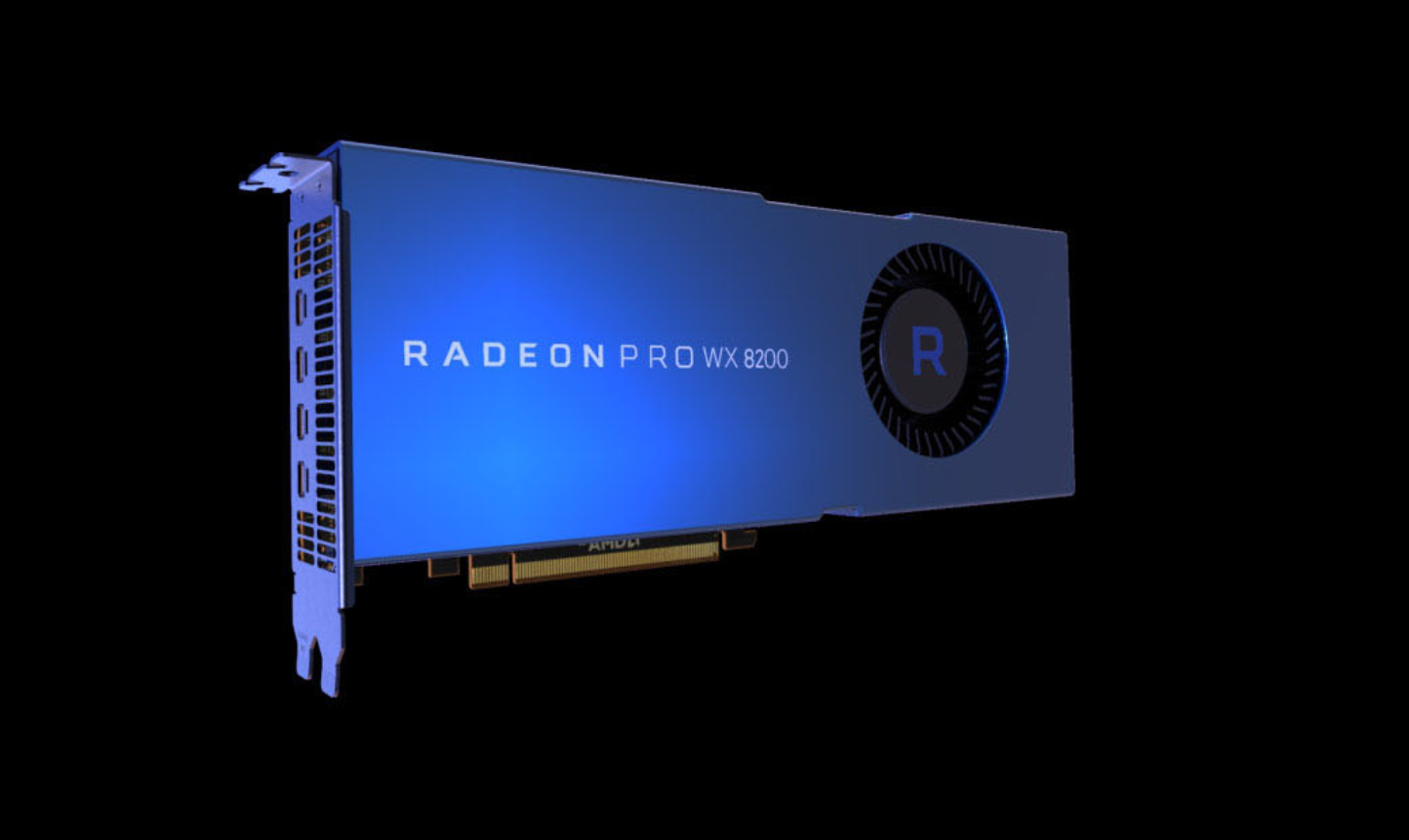

Radeon™ Pro WX 8200

Radeon™ Pro WX 8200 Graphics

Product description

Radeon™ Pro WX 8200 Graphics

GPU Specifications

GPU Architecture

Vega

Lithography

14nm FinFET

Stream Processors

3584

Compute Units

56

Peak Single Precision (FP32) Performance

10.75 TFLOPs

Peak Double Precision (FP64) Performance

672 GFLOPs

OS Support

Windows 11 - 64-Bit Edition

Requirements

External Power Connectors

1x PCIe 6-pin, 1x PCIe 8-pin

Total Board Power (TBP)

230W Peak

GPU Memory

Dedicated Memory Size

8 GB

Dedicated Memory Type

HBM2

Memory Interface

2048-bit

Peak Memory Bandwidth

Up to 512 GB/s

Memory ECC Support

Yes

Board Specifications

Form Factor

PCIe® Add-in Card

Bus Type

PCIe® 3.0 x16

Cooling

Active

Display Outputs

DisplayPort™

4x Mini-DisplayPort 1.4

HDMI™

None

DVI

None

VGA

None

Dimensions

Board Height

Full Height

Board Length

10.5" (267 mm)

Board Width

Double Slot

Additional Features

Supported Technologies

AMD Remote Workstation

AMD Radeon™ PRO Software

AMD Radeon™ VR Ready Creator

AMD Eyefinity Technology (Professionals)

Unified Video Decoder (UVD)

Video Code Engine (VCE)

High Bandwidth Cache (HBC) Controller

AMD DirectGMA Technology

S400 Synchronization Module Support

10-bit Display Color Output

Yes

3D Stereo Support

Yes (Stereo Connector included)
